Probabilistic Forecasting with `sktime`#

originally presented at pydata Berlin 2022, see there for video presentation

Overview of this notebook#

quick start - probabilistic forecasting
disambiguation - types of probabilistic forecasts
details: probabilistic forecasting interfaces
metrics for, and evaluation of probabilistic forecasts
advanced composition: pipelines, tuning, reduction
extender guide
contributor credits

[1]:

import warnings

warnings.filterwarnings("ignore")

Quick Start - Probabilistic Forecasting with `sktime`#

… works exactly like the basic forecasting workflow, replace predict by a probabilistic method!

[2]:

from sktime.datasets import load_airline
from sktime.forecasting.arima import ARIMA

# step 1: data specification
y = load_airline()
# step 2: specifying forecasting horizon
fh = [1, 2, 3]
# step 3: specifying the forecasting algorithm
forecaster = ARIMA()
# step 4: fitting the forecaster
forecaster.fit(y, fh=[1, 2, 3])
# step 5: querying predictions
y_pred = forecaster.predict()

# for probabilistic forecasting:
#   call a probabilistic forecasting method after or instead of step 5
y_pred_int = forecaster.predict_interval(coverage=0.9)
y_pred_int

[2]:

	Number of airline passengers
	0.9
	lower	upper
1961-01	371.535093	481.554608
1961-02	344.853205	497.712761
1961-03	324.223995	508.191104

probabilistic forecasting methods in ``sktime``:

forecast intervals - predict_interval(fh=None, X=None, coverage=0.90)
forecast quantiles - predict_quantiles(fh=None, X=None, alpha=[0.05, 0.95])
forecast variance - predict_var(fh=None, X=None, cov=False)
distribution forecast - predict_proba(fh=None, X=None, marginal=True)

To check which forecasters in sktime support probabilistic forecasting, use the registry.all_estimators utility and search for estimators which have the capability:pred_int tag (value True).

For composites such as pipelines, a positive tag means that logic is implemented if (some or all) components support it.

[3]:

from sktime.registry import all_estimators

all_estimators(
    "forecaster", filter_tags={"capability:pred_int": True}, as_dataframe=True
)

[3]:

	name	object
0	ARCH	<class 'sktime.forecasting.arch._uarch.ARCH'>
1	ARIMA	<class 'sktime.forecasting.arima.ARIMA'>
2	AutoARIMA	<class 'sktime.forecasting.arima.AutoARIMA'>
3	AutoETS	<class 'sktime.forecasting.ets.AutoETS'>
4	BATS	<class 'sktime.forecasting.bats.BATS'>
5	BaggingForecaster	<class 'sktime.forecasting.compose._bagging.Ba...
6	ColumnEnsembleForecaster	<class 'sktime.forecasting.compose._column_ens...
7	ConformalIntervals	<class 'sktime.forecasting.conformal.Conformal...
8	DynamicFactor	<class 'sktime.forecasting.dynamic_factor.Dyna...
9	FhPlexForecaster	<class 'sktime.forecasting.compose._fhplex.FhP...
10	ForecastX	<class 'sktime.forecasting.compose._pipeline.F...
11	ForecastingGridSearchCV	<class 'sktime.forecasting.model_selection._tu...
12	ForecastingPipeline	<class 'sktime.forecasting.compose._pipeline.F...
13	ForecastingRandomizedSearchCV	<class 'sktime.forecasting.model_selection._tu...
14	ForecastingSkoptSearchCV	<class 'sktime.forecasting.model_selection._tu...
15	NaiveForecaster	<class 'sktime.forecasting.naive.NaiveForecast...
16	NaiveVariance	<class 'sktime.forecasting.naive.NaiveVariance'>
17	Permute	<class 'sktime.forecasting.compose._pipeline.P...
18	Prophet	<class 'sktime.forecasting.fbprophet.Prophet'>
19	SARIMAX	<class 'sktime.forecasting.sarimax.SARIMAX'>
20	SquaringResiduals	<class 'sktime.forecasting.squaring_residuals....
21	StatsForecastARCH	<class 'sktime.forecasting.arch._statsforecast...
22	StatsForecastAutoARIMA	<class 'sktime.forecasting.statsforecast.Stats...
23	StatsForecastAutoCES	<class 'sktime.forecasting.statsforecast.Stats...
24	StatsForecastAutoETS	<class 'sktime.forecasting.statsforecast.Stats...
25	StatsForecastAutoTheta	<class 'sktime.forecasting.statsforecast.Stats...
26	StatsForecastGARCH	<class 'sktime.forecasting.arch._statsforecast...
27	StatsForecastMSTL	<class 'sktime.forecasting.statsforecast.Stats...
28	TBATS	<class 'sktime.forecasting.tbats.TBATS'>
29	ThetaForecaster	<class 'sktime.forecasting.theta.ThetaForecast...
30	TransformedTargetForecaster	<class 'sktime.forecasting.compose._pipeline.T...
31	UnobservedComponents	<class 'sktime.forecasting.structural.Unobserv...
32	VAR	<class 'sktime.forecasting.var.VAR'>
33	VECM	<class 'sktime.forecasting.vecm.VECM'>
34	YfromX	<class 'sktime.forecasting.compose._reduce.Yfr...

What is probabilistic forecasting?#

Intuition#

produce low/high scenarios of forecasts
quantify uncertainty around forecasts
produce expected range of variation of forecasts

Interface view#

Want to produce “distribution” or “range” of forecast values,

at time stamps defined by forecasting horizon fh

given past data y (series), and possibly exogeneous data X

Input, to fit or predict: fh, y, X

Output, from predict_probabilistic: some “distribution” or “range” object

Big caveat: there are multiple possible ways to model “distribution” or “range”!

Used in practice and easily confused! (and often, practically, confused!)

Formal view (endogeneous, one forecast time stamp)#

Let \(y(t_1), \dots, y(t_n)\) be observations at fixed time stamps \(t_1, \dots, t_n\).

(we consider \(y\) as an \(\mathbb{R}^n\)-valued random variable)

Let \(y'\) be a (true) value, which will be observed at a future time stamp \(\tau\).

(we consider \(y'\) as an \(\mathbb{R}\)-valued random variable)

We have the following “types of forecasts” of \(y'\):

Name	param	prediction/estimate of	`sktime`
point forecast		conditional expectation \(\mathbb{E}[y'\\|y]\)	`predict`
variance forecast		conditional variance \(Var[y'\\|y]\)	`predict_var`
quantile forecast	\(\alpha\in (0,1)\)	\(\alpha\)-quantile of \(y'\\|y\)	`predict_quantiles`
interval forecast	\(c\in (0,1)\)	\([a,b]\) s.t. \(P(a\le y' \le b\\| y) = c\)	`predict_interval`
distribution forecast		the law/distribution of \(y'\\|y\)	`predict_proba`

Notes:

different forecasters have different capabilities!
metrics, evaluation & tuning are different by “type of forecast”
compositors can “add” type of forecast! Example: bootstrap

More formal details & intuition:#

a “point forecast” is a prediction/estimate of the conditional expectation \(\mathbb{E}[y'|y]\). Intuition: “out of many repetitions/worlds, this value is the arithmetic average of all observations”.
a “variance forecast” is a prediction/estimate of the conditional expectation \(Var[y'|y]\). Intuition: “out of many repetitions/worlds, this value is the average squared distance of the observation to the perfect point forecast”.
a “quantile forecast”, at quantile point \(\alpha\in (0,1)\) is a prediction/estimate of the \(\alpha\)-quantile of \(y'|y\), i.e., of \(F^{-1}_{y'|y}(\alpha)\), where \(F^{-1}\) is the (generalized) inverse cdf = quantile function of the random variable y’|y. Intuition: “out of many repetitions/worlds, a fraction of exactly \(\alpha\) will have equal or smaller than this value.”
an “interval forecast” or “predictive interval” with (symmetric) coverage \(c\in (0,1)\) is a prediction/estimate pair of lower bound \(a\) and upper bound \(b\) such that \(P(a\le y' \le b| y) = c\) and \(P(y' \gneq b| y) = P(y' \lneq a| y) = (1 - c) /2\). Intuition: “out of many repetitions/worlds, a fraction of exactly \(c\) will be contained in the interval \([a,b]\), and being above is equally likely as being below”.
a “distribution forecast” or “full probabilistic forecast” is a prediction/estimate of the distribution of \(y'|y\), e.g., “it’s a normal distribution with mean 42 and variance 1”. Intuition: exhaustive description of the generating mechanism of many repetitions/worlds.

Notes:

lower/upper of interval forecasts are quantile forecasts at quantile points \(0.5 - c/2\) and \(0.5 + c/2\) (as long as forecast distributions are absolutely continuous).
all other forecasts can be obtained from a full probabilistic forecasts; a full probabilistic forecast can be obtained from all quantile forecasts or all interval forecasts.
there is no exact relation between the other types of forecasts (point or variance vs quantile)
in particular, point forecast does not need to be median forecast aka 0.5-quantile forecast. Can be \(\alpha\)-quantile for any \(\alpha\)!

Frequent confusion in literature & python packages: * coverage c vs quantile \alpha * coverage c vs significance p = 1-c * quantile of lower interval bound, p/2, vs p * interval forecasts vs related, but substantially different concepts: confidence interval on predictive mean; Bayesian posterior or credibility interval of the predictive mean * all forecasts above can be Bayesian, confusion: “posteriors are different” or “have to be evaluated differently”

Probabilistic forecasting interfaces in `sktime`#

This section:

walkthrough of probabilistic predict methods
use in update/predict workflow
multivariate and hierarchical data

All forecasters with tag capability:pred_int provide the following:

forecast intervals - predict_interval(fh=None, X=None, coverage=0.90)
forecast quantiles - predict_quantiles(fh=None, X=None, alpha=[0.05, 0.95])
forecast variance - predict_var(fh=None, X=None, cov=False)
distribution forecast - predict_proba(fh=None, X=None, marginal=True)

Generalities:

methods do not change state, multiple can be called
fh is optional, if passed late
exogeneous data X can be passed

[4]:

import numpy as np

from sktime.datasets import load_airline
from sktime.forecasting.theta import ThetaForecaster

# until fit, identical with the simple workflow
y = load_airline()

fh = np.arange(1, 13)

forecaster = ThetaForecaster(sp=12)
forecaster.fit(y, fh=fh)

[4]:

ThetaForecaster(sp=12)

Please rerun this cell to show the HTML repr or trust the notebook.

Inputs:
fh - forecasting horizon (not necessary if seen in fit)
coverage, float or list of floats, default=0.9
nominal coverage(s) of the prediction interval(s) queried

Output: pandas.DataFrame
Row index is fh
Column has multi-index:
1st level = variable name from y in fit
2nd level = coverage fractions in coverage
3rd level = string “lower” or “upper”

Entries = forecasts of lower/upper interval at nominal coverage in 2nd lvl, for var in 1st lvl, for time in row

[5]:

coverage = 0.9
y_pred_ints = forecaster.predict_interval(coverage=coverage)
y_pred_ints

[5]:

	Number of airline passengers
	0.9
	lower	upper
1961-01	418.280121	464.281951
1961-02	402.215881	456.888055
1961-03	459.966113	522.110500
1961-04	442.589309	511.399214
1961-05	443.525027	518.409480
1961-06	506.585814	587.087737
1961-07	561.496768	647.248956
1961-08	557.363322	648.062363
1961-09	477.658055	573.047752
1961-10	407.915090	507.775355
1961-11	346.942924	451.082017
1961-12	394.708221	502.957142

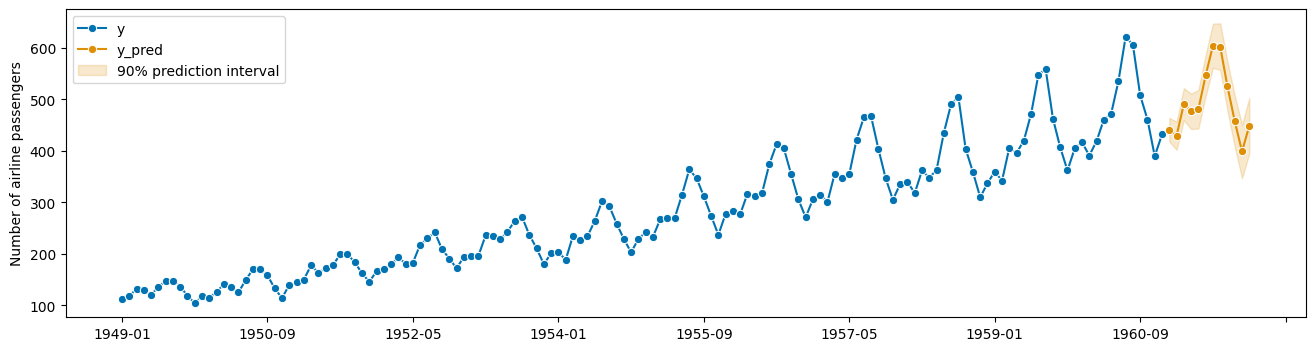

pretty-plotting the predictive interval forecasts:

[6]:

from sktime.utils import plotting

# also requires predictions
y_pred = forecaster.predict()

fig, ax = plotting.plot_series(
    y, y_pred, labels=["y", "y_pred"], pred_interval=y_pred_ints
)

ax.legend();

../_images/examples_01b_forecasting_proba_21_0.png

multiple coverages:

[7]:

coverage = [0.5, 0.9, 0.95]
y_pred_ints = forecaster.predict_interval(coverage=coverage)
y_pred_ints

[7]:

	Number of airline passengers
	0.50		0.90		0.95
	lower	upper	lower	upper	lower	upper
1961-01	431.849266	450.712806	418.280121	464.281951	413.873755	468.688317
1961-02	418.342514	440.761421	402.215881	456.888055	396.979011	462.124925
1961-03	478.296822	503.779790	459.966113	522.110500	454.013504	528.063109
1961-04	462.886144	491.102379	442.589309	511.399214	435.998232	517.990291
1961-05	465.613670	496.320837	443.525027	518.409480	436.352089	525.582418
1961-06	530.331440	563.342111	506.585814	587.087737	498.874797	594.798754
1961-07	586.791063	621.954661	561.496768	647.248956	553.282845	655.462879
1961-08	584.116789	621.308897	557.363322	648.062363	548.675556	656.750129
1961-09	505.795123	544.910684	477.658055	573.047752	468.520987	582.184821
1961-10	437.370840	478.319605	407.915090	507.775355	398.349800	517.340645
1961-11	377.660798	420.364142	346.942924	451.082017	336.967779	461.057162
1961-12	426.638370	471.026993	394.708221	502.957142	384.339408	513.325954

Inputs:
fh - forecasting horizon (not necessary if seen in fit)
alpha, float or list of floats, default = [0.1, 0.9]
quantile points at which quantiles are queried

Output: pandas.DataFrame
Row index is fh
Column has multi-index:
1st level = variable name from y in fit
2nd level = quantile points in alpha

Entries = forecasts of quantiles at quantile point in 2nd lvl, for var in 1st lvl, for time in row

[8]:

alpha = [0.1, 0.25, 0.5, 0.75, 0.9]
y_pred_quantiles = forecaster.predict_quantiles(alpha=alpha)
y_pred_quantiles

[8]:

	Number of airline passengers
	0.10	0.25	0.50	0.75	0.90
1961-01	423.360378	431.849266	441.281036	450.712806	459.201694
1961-02	408.253656	418.342514	429.551968	440.761421	450.850279
1961-03	466.829089	478.296822	491.038306	503.779790	515.247523
1961-04	450.188398	462.886144	476.994261	491.102379	503.800124
1961-05	451.794965	465.613670	480.967253	496.320837	510.139542
1961-06	515.476123	530.331440	546.836776	563.342111	578.197428
1961-07	570.966895	586.791063	604.372862	621.954661	637.778829
1961-08	567.379760	584.116789	602.712843	621.308897	638.045925
1961-09	488.192511	505.795123	525.352904	544.910684	562.513297
1961-10	418.943257	437.370840	457.845222	478.319605	496.747188
1961-11	358.443627	377.660798	399.012470	420.364142	439.581313
1961-12	406.662797	426.638370	448.832681	471.026993	491.002565

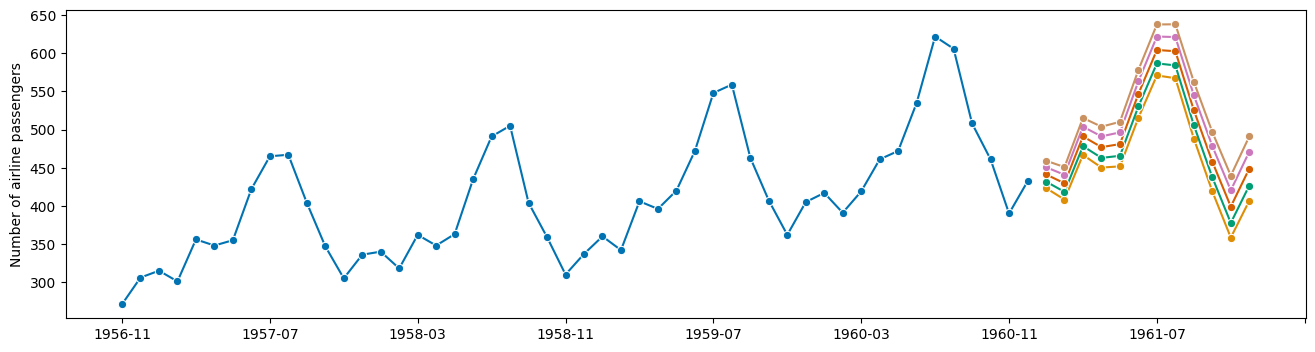

pretty-plotting the quantile interval forecasts:

[9]:

from sktime.utils import plotting

columns = [y_pred_quantiles[i] for i in y_pred_quantiles.columns]
fig, ax = plotting.plot_series(y[-50:], *columns)

../_images/examples_01b_forecasting_proba_28_0.png

Inputs:
fh - forecasting horizon (not necessary if seen in fit)
cov, boolean, default=False
whether covariance forecasts should also be returned (not all estimators support this)

Output: pandas.DataFrame, for cov=False:
Row index is fh
Column is equal to column index of y (variables)

Entries = variance forecast for variable in col, for time in row

[10]:

y_pred_variance = forecaster.predict_var()
y_pred_variance

[10]:

	Number of airline passengers
1961-01	195.540049
1961-02	276.196510
1961-03	356.852970
1961-04	437.509430
1961-05	518.165890
1961-06	598.822350
1961-07	679.478810
1961-08	760.135270
1961-09	840.791730
1961-10	921.448190
1961-11	1002.104650
1961-12	1082.761110

with covariance, using a forecaster which can return covariance forecasts:

return is pandas.DataFrame with fh indexing rows and columns;
entries are forecast covariance between row and column time
(diagonal = forecast variances)

[11]:

from sktime.forecasting.naive import NaiveVariance

forecaster_with_covariance = NaiveVariance(forecaster)
forecaster_with_covariance.fit(y=y, fh=fh)
forecaster_with_covariance.predict_var(cov=True)

[11]:

	1961-01	1961-02	1961-03	1961-04	1961-05	1961-06	1961-07	1961-08	1961-09	1961-10	1961-11	1961-12
1961-01	292.337333	255.742991	264.805437	227.703049	146.093848	154.452828	157.976795	105.160767	78.330263	81.835807	78.048880	197.364510
1961-02	255.742991	422.704601	402.539255	353.437043	291.205404	236.587874	227.199374	205.653010	152.067425	121.629138	156.199110	245.437907
1961-03	264.805437	402.539255	588.085328	506.095455	426.997512	394.503923	311.457837	282.072145	243.688600	185.938840	185.070360	305.461211
1961-04	227.703049	353.437043	506.095455	634.350443	526.180879	482.653094	422.777303	323.453741	280.749312	242.065788	211.397164	294.971031
1961-05	146.093848	291.205404	426.997512	526.180879	628.659343	570.277520	499.460184	419.166444	325.582777	281.608605	269.847439	318.534675
1961-06	154.452828	236.587874	394.503923	482.653094	570.277520	728.132497	629.184840	527.767034	444.690518	330.643655	313.248426	382.803216
1961-07	157.976795	227.199374	311.457837	422.777303	499.460184	629.184840	753.550004	629.138725	536.407567	441.998605	352.570966	415.110916
1961-08	105.160767	205.653010	282.072145	323.453741	419.166444	527.767034	629.138725	729.423304	615.142491	506.155614	439.994838	430.992291
1961-09	78.330263	152.067425	243.688600	280.749312	325.582777	444.690518	536.407567	615.142491	744.225561	609.227140	527.489573	546.637585
1961-10	81.835807	121.629138	185.938840	242.065788	281.608605	330.643655	441.998605	506.155614	609.227140	697.805479	590.542043	604.681130
1961-11	78.048880	156.199110	185.070360	211.397164	269.847439	313.248426	352.570966	439.994838	527.489573	590.542043	706.960626	698.982580
1961-12	197.364510	245.437907	305.461211	294.971031	318.534675	382.803216	415.110916	430.992291	546.637585	604.681130	698.982580	913.698229

Inputs:
fh - forecasting horizon (not necessary if seen in fit)
marginal, bool, optional, default=True
whether returned distribution is marginal over time points (True), or joint over time points (False)
(not all forecasters support marginal=False)

Output: tensorflow-probability Distribution object (requires tensorflow installed)
if marginal=True: batch shape 1D, len(fh) (time); event shape 1D, len(y.columns) (variables)
if marginal=False: event shape 2D, [len(fh), len(y.columns)]

[12]:

y_pred_dist = forecaster.predict_proba()
y_pred_dist

[12]:

Normal(columns=Index(['Number of airline passengers'], dtype='object'),
       index=PeriodIndex(['1961-01', '1961-02', '1961-03', '1961-04', '1961-05', '1961-06',
             '1961-07', '1961-08', '1961-09', '1961-10', '1961-11', '1961-12'],
            dtype='period[M]'),
       mu=         Number of airline passengers
1961-01                    441.281036
1961-02                    429.551968
1961-03                    491.038306
1961-04                    476.994261
1961-05                    480.967253
1961-06                    546.836776
1961-07                    604.372862
1961-08                    602.712843
1961-09                    525.352904
1961-10                    457.845222
1961-11                    399.012470
1961-12                    448.832681,
       sigma=         Number of airline passengers
1961-01                     13.983564
1961-02                     16.619161
1961-03                     18.890552
1961-04                     20.916726
1961-05                     22.763257
1961-06                     24.470847
1961-07                     26.066814
1961-08                     27.570551
1961-09                     28.996409
1961-10                     30.355365
1961-11                     31.656037
1961-12                     32.905336)

Please rerun this cell to show the HTML repr or trust the notebook.

[13]:

# obtaining quantiles
y_pred_dist.quantile([0.1, 0.9])

[13]:

	Number of airline passengers
	0.1	0.9
1961-01	423.360378	459.201694
1961-02	408.253656	450.850279
1961-03	466.829089	515.247523
1961-04	450.188398	503.800124
1961-05	451.794965	510.139542
1961-06	515.476123	578.197428
1961-07	570.966895	637.778829
1961-08	567.379760	638.045925
1961-09	488.192511	562.513297
1961-10	418.943257	496.747188
1961-11	358.443627	439.581313
1961-12	406.662797	491.002565

Outputs of predict_interval, predict_quantiles, predict_var, predict_proba are typically but not necessarily consistent with each other!

Consistency is weak interface requirement but not strictly enforced.

Using probabilistic forecasts with update/predict stream workflow#

Example: * data observed monthly * make probabilistic forecasts for an entire year ahead * update forecasts every month * start in Dec 1950

[14]:

# 1949 and 1950
y_start = y[:24]
# Jan 1951 etc
y_update_batch_1 = y.loc[["1951-01"]]
y_update_batch_2 = y.loc[["1951-02"]]
y_update_batch_3 = y.loc[["1951-03"]]

[15]:

# now = Dec 1950

# 1a. fit to data available in Dec 1950
#   fh = [1, 2, ..., 12] for all 12 months ahead
forecaster.fit(y_start, fh=1 + np.arange(12))

# 1b. predict 1951, in Dec 1950
forecaster.predict_interval()
# or other proba predict functions

[15]:

	Number of airline passengers
	0.9
	lower	upper
1951-01	125.708002	141.744261
1951-02	135.554588	154.422393
1951-03	149.921349	171.248013
1951-04	140.807416	164.337377
1951-05	127.941095	153.485009
1951-06	152.968275	180.378566
1951-07	167.193932	196.351377
1951-08	166.316508	197.122174
1951-09	150.425511	182.795583
1951-10	128.623026	162.485306
1951-11	109.567274	144.858726
1951-12	125.641283	162.306240

[16]:

# time passes, now = Jan 1951

# 2a. update forecaster with new data
forecaster.update(y_update_batch_1)

# 2b. make new prediction - year ahead = Feb 1951 to Jan 1952
forecaster.predict_interval()
# forecaster remembers relative forecasting horizon

[16]:

	Number of airline passengers
	0.9
	lower	upper
1951-02	136.659402	152.695661
1951-03	150.894543	169.762349
1951-04	141.748827	163.075491
1951-05	128.876520	152.406481
1951-06	153.906405	179.450320
1951-07	168.170068	195.580359
1951-08	167.339646	196.497090
1951-09	151.478084	182.283750
1951-10	129.681609	162.051681
1951-11	110.621193	144.483474
1951-12	126.786543	162.077995
1952-01	121.345111	158.010067

repeat the same commands with further data batches:

[17]:

# time passes, now = Feb 1951

# 3a. update forecaster with new data
forecaster.update(y_update_batch_2)

# 3b. make new prediction - year ahead = Feb 1951 to Jan 1952
forecaster.predict_interval()

[17]:

	Number of airline passengers
	0.9
	lower	upper
1951-03	151.754371	167.790630
1951-04	142.481690	161.349495
1951-05	129.549186	150.875849
1951-06	154.439360	177.969321
1951-07	168.623239	194.167153
1951-08	167.770038	195.180329
1951-09	151.929278	181.086722
1951-10	130.167028	160.972694
1951-11	111.133094	143.503166
1951-12	127.264383	161.126664
1952-01	121.830219	157.121670
1952-02	132.976427	169.641384

[18]:

# time passes, now = Feb 1951

# 4a. update forecaster with new data
forecaster.update(y_update_batch_3)

# 4b. make new prediction - year ahead = Feb 1951 to Jan 1952
forecaster.predict_interval()

[18]:

	Number of airline passengers
	0.9
	lower	upper
1951-04	143.421746	159.458004
1951-05	130.401490	149.269296
1951-06	155.166804	176.493468
1951-07	169.300651	192.830612
1951-08	168.451755	193.995669
1951-09	152.643331	180.053622
1951-10	130.913430	160.070874
1951-11	111.900912	142.706578
1951-12	128.054396	160.424468
1952-01	122.645044	156.507325
1952-02	133.834100	169.125551
1952-03	149.605269	186.270225

… and so on.

[19]:

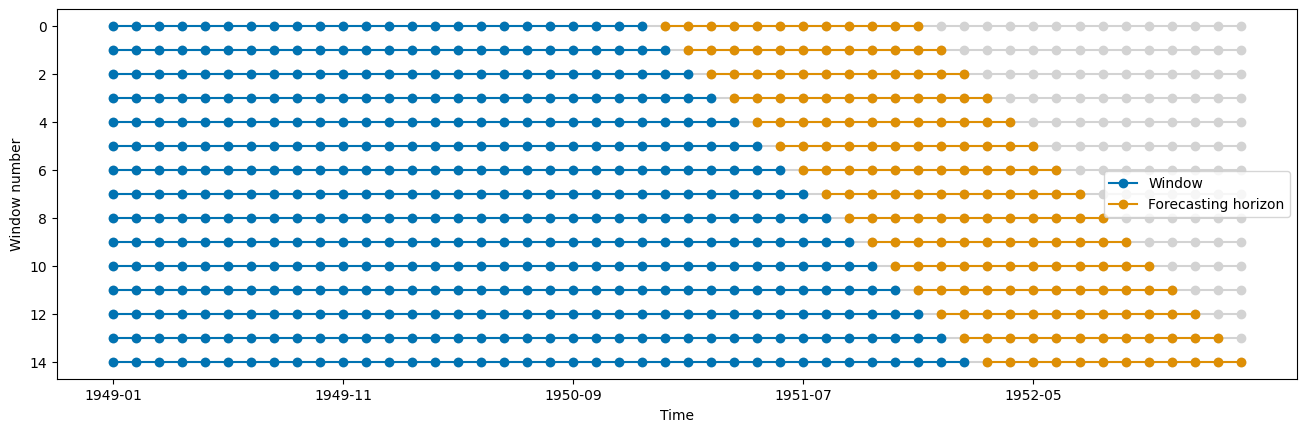

from sktime.split import ExpandingWindowSplitter
from sktime.utils.plotting import plot_windows

cv = ExpandingWindowSplitter(step_length=1, fh=fh, initial_window=24)
plot_windows(cv, y.iloc[:50])

[19]:

(<Figure size 1600x480 with 1 Axes>,
 <Axes: xlabel='Time', ylabel='Window number'>)

../_images/examples_01b_forecasting_proba_48_1.png

Probabilistic forecasting for multivariate and hierarchical data#

multivariate data: first column index for different variables

[20]:

from sktime.datasets import load_longley
from sktime.forecasting.var import VAR

_, y = load_longley()

mv_forecaster = VAR()

mv_forecaster.fit(y, fh=[1, 2, 3])
# mv_forecaster.predict_var()

[20]:

VAR()

Please rerun this cell to show the HTML repr or trust the notebook.

hierarchical data: probabilistic forecasts per level are row-concatenated with a row hierarchy index

[21]:

from sktime.forecasting.arima import ARIMA
from sktime.utils._testing.hierarchical import _make_hierarchical

y_hier = _make_hierarchical()
y_hier

[21]:

			c0
h0	h1	time
h0_0	h1_0	2000-01-01	5.272974
		2000-01-02	4.416770
		2000-01-03	2.991815
		2000-01-04	2.360916
		2000-01-05	2.269617
...	...	...	...
h0_1	h1_3	2000-01-08	4.388797
		2000-01-09	5.096147
		2000-01-10	3.347833
		2000-01-11	3.560713
		2000-01-12	4.467743

96 rows × 1 columns

[22]:

forecaster = ARIMA()
forecaster.fit(y_hier, fh=[1, 2, 3])
forecaster.predict_interval()

[22]:

			0
			0.9
			lower	upper
h0	h1	time
h0_0	h1_0	2000-01-13	1.722621	5.035875
		2000-01-14	1.880358	5.280790
		2000-01-15	1.924552	5.329570
	h1_1	2000-01-13	1.847150	4.690652
		2000-01-14	1.874098	4.740716
		2000-01-15	1.878830	4.745823
	h1_2	2000-01-13	2.012331	5.262287
		2000-01-14	1.717852	4.986732
		2000-01-15	1.748543	5.017644
	h1_3	2000-01-13	2.673739	4.996850
		2000-01-14	2.589237	4.975105
		2000-01-15	2.599973	4.989230
h0_1	h1_0	2000-01-13	2.596552	4.620861
		2000-01-14	2.144881	4.272040
		2000-01-15	2.268863	4.406453
	h1_1	2000-01-13	2.353941	5.390139
		2000-01-14	2.267849	5.321420
		2000-01-15	2.259457	5.313227
	h1_2	2000-01-13	1.877079	5.224196
		2000-01-14	1.975364	5.387870
		2000-01-15	2.000103	5.415163
	h1_3	2000-01-13	2.655375	5.049080
		2000-01-14	2.577533	4.986714
		2000-01-15	2.569449	4.978829

(more about this in the hierarchical forecasting notebook)

Metrics for probabilistic forecasts and evaluation#

overview - theory#

Predicted y has different form from true y, so metrics have form

metric(y_true: series, y_pred: proba_prediction) -> float

where proba_prediction is the type of the specific “probabilistic prediction type”.

I.e., we have the following function signature for a loss/metric \(L\):

Name	param	prediction/estimate of	general form
point forecast		conditional expectation \(\mathbb{E}[y'\\|y]\)	`metric(y_true, y_pred)`
variance forecast		conditional variance \(Var[y'\\|y]\)	`metric(y_pred, y_pt, y_var)` (requires point forecast too)
quantile forecast	\(\alpha\in (0,1)\)	\(\alpha\)-quantile of \(y'\\|y\)	`metric(y_true, y_quantiles, alpha)`
interval forecast	\(c\in (0,1)\)	\([a,b]\) s.t. \(P(a\le y' \le b\\| y) = c\)	`metric(y_true, y_interval, c)`
distribution forecast		the law/distribution of \(y'\\|y\)	`metric(y_true, y_distribution)`

metrics: general signature and averaging#

intro using the example of the quantile loss aka interval loss aka pinball loss, in the univariate case.

For one quantile value \(\alpha\), the (per-sample) pinball loss function is defined as
\(L_{\alpha}(\widehat{y}, y) := \alpha \cdot \Theta (y - \widehat{y}) + (1-\alpha) \cdot \Theta (\widehat{y} - y)\),
where \(\Theta (x) := [1\) if \(x\ge 0\) and \(0\) otherwise \(]\) is the Heaviside function.

This can be used to evaluate:

multiple quantile forecasts \(\widehat{\bf y}:=\widehat{y}_1, \dots, \widehat{y}_k\) for quantiles \(\bm{\alpha} = \alpha_1,\dots, \alpha_k\) via \(L_{\bm{\alpha}}(\widehat{\bf y}, y) := \frac{1}{k}\sum_{i=1}^k L_{\alpha_i}(\widehat{y}_i, y)\)
interval forecasts \([\widehat{a}, \widehat{b}]\) at symmetric coverage \(c\) via \(L_c([\widehat{a},\widehat{b}], y) := \frac{1}{2} L_{\alpha_{low}}(\widehat{a}, y) + \frac{1}{2}L_{\alpha_{high}}(\widehat{b}, y)\) where \(\alpha_{low} = \frac{1-c}{2}, \alpha_{high} = \frac{1+c}{2}\)

(all are known to be strictly proper losses for their respective prediction object)

There are three things we can choose to average over:

quantile values, if multiple are predicted - elements of alpha in predict_interval(fh, alpha)
time stamps in the forecasting horizon fh - elements of fh in fit(fh) resp predict_interval(fh, alpha)
variables in y, in case of multivariate (later, first we look at univariate)

We will show quantile values and time stamps first:

averaging by fh time stamps only -> one number per quantile value in alpha
averaging over nothing -> one number per quantile value in alpha and fh time stamp
averaging over both fh and quantile values in alpha -> one number

first, generating some quantile predictions. pred_quantiles now contains quantile forecasts
formally, forecasts \(\widehat{y}_j(t_i)\) where \(\widehat{y_j}\) are forecasts at quantile \(\alpha_j\), with range \(i=1\dots N, j=1\dots k\)
\(\alpha_j\) are the elements of alpha, and \(t_i\) are the future time stamps indexed by fh

[23]:

import numpy as np

from sktime.datasets import load_airline
from sktime.forecasting.theta import ThetaForecaster

y_train = load_airline()[0:24]  # train on 24 months, 1949 and 1950
y_test = load_airline()[24:36]  # ground truth for 12 months in 1951

# try to forecast 12 months ahead, from y_train
fh = np.arange(1, 13)

forecaster = ThetaForecaster(sp=12)
forecaster.fit(y_train, fh=fh)

pred_quantiles = forecaster.predict_quantiles(alpha=[0.1, 0.25, 0.5, 0.75, 0.9])
pred_quantiles

[23]:

	Number of airline passengers
	0.10	0.25	0.50	0.75	0.90
1951-01	127.478982	130.438212	133.726132	137.014051	139.973281
1951-02	137.638273	141.120018	144.988491	148.856963	152.338709
1951-03	152.276580	156.212068	160.584681	164.957294	168.892782
1951-04	143.405971	147.748041	152.572397	157.396752	161.738823
1951-05	130.762062	135.475775	140.713052	145.950329	150.664042
1951-06	155.995358	161.053480	166.673421	172.293362	177.351484
1951-07	170.413964	175.794494	181.772655	187.750815	193.131346
1951-08	169.718562	175.403245	181.719341	188.035437	193.720120
1951-09	154.000332	159.973701	166.610547	173.247393	179.220762
1951-10	132.362640	138.611371	145.554166	152.496960	158.745692
1951-11	113.464721	119.977182	127.213000	134.448818	140.961280
1951-12	129.690414	136.456333	143.973761	151.491189	158.257109

computing the loss by quantile point or interval end, averaged over fh time stamps i.e., \(\frac{1}{N} \sum_{i=1}^N L_{\alpha}(\widehat{y}(t_i), y(t_i))\) for \(t_i\) in the fh, and every alpha, this is one number per quantile value in alpha

[24]:

from sktime.performance_metrics.forecasting.probabilistic import PinballLoss

loss = PinballLoss(score_average=False)
loss(y_true=y_test, y_pred=pred_quantiles)

[24]:

0.10    2.706601
0.25    5.494502
0.50    8.162432
0.75    8.003790
0.90    5.220235
Name: 0, dtype: float64

computing the the individual loss values, by sample, no averaging, i.e., \(L_{\alpha}(\widehat{y}(t_i), y(t_i))\) for every \(t_i\) in fh and every \(\alpha\) in alpha this is one number per quantile value \(\alpha\) in alpha and time point \(t_i\) in fh

[25]:

loss.evaluate_by_index(y_true=y_test, y_pred=pred_quantiles)

[25]:

	0.10	0.25	0.50	0.75	0.90
0	1.752102	3.640447	5.636934	5.989462	4.524047
1	1.236173	2.219995	2.505755	0.857278	0.233871
2	2.572342	5.446983	8.707660	9.782030	8.196497
3	1.959403	3.812990	5.213802	4.202436	1.135059
4	4.123794	9.131056	15.643474	19.537253	19.202362
5	2.200464	4.236630	5.663290	4.279979	0.583664
6	2.858604	5.801376	8.613673	8.436889	5.281789
7	2.928144	5.899189	8.640329	8.223422	4.751892
8	2.999967	6.006575	8.694726	8.064455	4.301314
9	2.963736	5.847157	8.222917	7.127280	2.928877
10	3.253528	6.505704	9.393500	8.663387	4.534848
11	3.630959	7.385917	11.013119	10.881608	6.968602

computing the loss for a multiple quantile forecast, averaged over fh time stamps and quantile values alpha i.e., \(\frac{1}{Nk} \sum_{j=1}^k\sum_{i=1}^N L_{\alpha_j}(\widehat{y_j}(t_i), y(t_i))\) for \(t_i\) in fh, and quantile values \(\alpha_j\), this is a single number that can be used in tuning (e.g., grid search) or evaluation overall

[26]:

from sktime.performance_metrics.forecasting.probabilistic import PinballLoss

loss_multi = PinballLoss(score_average=True)
loss_multi(y_true=y_test, y_pred=pred_quantiles)

[26]:

5.917511873790087

computing the loss for a multiple quantile forecast, averaged quantile values alpha, for individual time stamps i.e., \(\frac{1}{k} \sum_{j=1}^k L_{\alpha_j}(\widehat{y_j}(t_i), y(t_i))\) for \(t_i\) in fh, and quantile values \(\alpha_j\), this is a univariate time series at fh times \(t_i\), it can be used for tuning or evaluation by horizon index

[27]:

loss_multi.evaluate_by_index(y_true=y_test, y_pred=pred_quantiles)

[27]:

0      4.308598
1      1.410614
2      6.941102
3      3.264738
4     13.527588
5      3.392805
6      6.198466
7      6.088595
8      6.013407
9      5.417993
10     6.470193
11     7.976041
dtype: float64

Question: why is score_average a constructor flag, and evaluate_by_index a method?

not all losses are “by index”, so evaluate_by_index logic can vary (e.g., pseudo-samples)
constructor args define “mathematical object” of scientific signature: series -> non-temporal object methods define action or “way to apply”, e.g., as used in tuning or reporting

Compare score_average to multioutput arg in scikit-learn metrics and sktime.

metrics: interval vs quantile metrics#

Interval and quantile metrics can be used interchangeably:

internally, these are easily convertible to each other

recall: lower/upper interval = quantiles at \(\frac{1}{2} \pm \frac{1}2\) coverage

[28]:

pred_interval = forecaster.predict_interval(coverage=0.8)
pred_interval

[28]:

	Number of airline passengers
	0.8
	lower	upper
1951-01	127.478982	139.973281
1951-02	137.638273	152.338709
1951-03	152.276580	168.892782
1951-04	143.405971	161.738823
1951-05	130.762062	150.664042
1951-06	155.995358	177.351484
1951-07	170.413964	193.131346
1951-08	169.718562	193.720120
1951-09	154.000332	179.220762
1951-10	132.362640	158.745692
1951-11	113.464721	140.961280
1951-12	129.690414	158.257109

loss object recognizes input type automatically and computes corresponding interval loss

[29]:

loss(y_true=y_test, y_pred=pred_interval)

[29]:

0.1    2.706601
0.9    5.220235
Name: 0, dtype: float64

[30]:

loss_multi(y_true=y_test, y_pred=pred_interval)

[30]:

3.9634182197580174

evaluation by backtesting#

[31]:

from sktime.datasets import load_airline
from sktime.forecasting.model_evaluation import evaluate
from sktime.forecasting.theta import ThetaForecaster
from sktime.performance_metrics.forecasting.probabilistic import PinballLoss
from sktime.split import ExpandingWindowSplitter

# 1. define data
y = load_airline()

# 2. define splitting/backtesting regime
fh = [1, 2, 3]
cv = ExpandingWindowSplitter(step_length=12, fh=fh, initial_window=72)

# 3. define loss to use
loss = PinballLoss()
# default is score_average=True and multi_output="uniform_average", so gives a number

forecaster = ThetaForecaster(sp=12)
results = evaluate(
    forecaster=forecaster, y=y, cv=cv, strategy="refit", return_data=True, scoring=loss
)
results.iloc[:, :5].head()

[31]:

	test_PinballLoss	fit_time	pred_quantiles_time	len_train_window	cutoff
0	0.865788	0.004671	0.002910	72	1954-12
1	0.958340	0.003195	0.003149	84	1955-12
2	0.981744	0.003315	0.002972	96	1956-12
3	1.411309	0.003242	0.003038	108	1957-12
4	1.187198	0.003085	0.002992	120	1958-12

each row is one train/test split in the walkforward setting
first col is the loss on the test fold
last two columns summarize length of training window, cutoff between train/test

roadmap items:

implementing further metrics

distribution prediction metrics - may need tfp extension
advanced evaluation set-ups
variance loss

contributions are appreciated!

Visual Evaluation#

Often, the probabilistic forecast’s calibration is important. I.e., how many values are smaller then the 0.1 quantile, 0.2 quantile, etc.

This evaluation can be made using calibration plots:

[32]:

from sktime.utils.plotting import plot_calibration

plot_calibration(y_true=y_test.loc[pred_quantiles.index], y_pred=pred_quantiles)

[32]:

(<Figure size 1600x400 with 1 Axes>, <Axes: >)

../_images/examples_01b_forecasting_proba_83_1.png

Advanced composition: pipelines, tuning, reduction, adding proba forecasts to any estimator#

composition = constructing “composite” estimators out of multiple “component” estimators

reduction = building estimator type A using estimator type B
- special case: adding proba forecasting capability to non-proba forecaster
- special case: using proba supervised learner for proba forecasting
pipelining = chaining estimators, here: transformers to a forecaster
tuning = automated hyper-parameter fitting, usually via internal evaluation loop
- special case: grid parameter search and random parameter search tuning
- special case: “Auto-ML”, optimizing not just estimator hyper-parameter but also choice of estimator

Adding probabilistic forecasts to non-probabilistic forecasters#

start with a forecaster that does not produce probabilistic predictions:

[33]:

from sktime.forecasting.exp_smoothing import ExponentialSmoothing

my_forecaster = ExponentialSmoothing()

# does the forecaster support probabilistic predictions?
my_forecaster.get_tag("capability:pred_int")

[33]:

False

adding probabilistic predictions is possible via reduction wrappers:

[34]:

# NaiveVariance adds intervals & variance via collecting past residuals
from sktime.forecasting.naive import NaiveVariance

# create a composite forecaster like this:
my_forecaster_with_proba = NaiveVariance(my_forecaster)

# does it support probabilistic predictions now?
my_forecaster_with_proba.get_tag("capability:pred_int")

[34]:

True

the composite can now be used like any probabilistic forecaster:

[35]:

y = load_airline()

my_forecaster_with_proba.fit(y, fh=[1, 2, 3])
my_forecaster_with_proba.predict_interval()

[35]:

	Number of airline passengers
	0.9
	lower	upper
1961-01	341.960792	522.039207
1961-02	319.835453	544.164546
1961-03	307.334056	556.665943

roadmap items:

more compositors to enable probabilistic forecasting

bootstrap forecast intervals
reduction to probabilistic supervised learning
popular “add probabilistic capability” wrappers

contributions are appreciated!

Tuning and AutoML#

tuning and autoML with probabilistic forecasters works exactly like with “ordinary” forecasters

via ForecastingGridSearchCV or ForecastingRandomSearchCV

change metric to tune to a probabilistic metric
use a corresponding probabilistic metric or loss function

Internally, evaluation will be done using probabilistic metric, via backtesting evaluation.

important: to evaluate the tuned estimator, use it in evaluate or a separate benchmarking workflow.

Using internal metric/loss values amounts to in-sample evaluation, which is over-optimistic.

[36]:

from sktime.forecasting.model_selection import ForecastingGridSearchCV
from sktime.forecasting.theta import ThetaForecaster
from sktime.performance_metrics.forecasting.probabilistic import PinballLoss
from sktime.split import SlidingWindowSplitter

# forecaster we want to tune
forecaster = ThetaForecaster()

# parameter grid to search over
param_grid = {"sp": [1, 6, 12]}

# evaluation/backtesting regime for *tuning*
fh = [1, 2, 3]  # fh for tuning regime, does not need to be same as in fit/predict!
cv = SlidingWindowSplitter(window_length=36, fh=fh)
scoring = PinballLoss()

# construct the composite forecaster with grid search compositor
gscv = ForecastingGridSearchCV(
    forecaster, cv=cv, param_grid=param_grid, scoring=scoring, strategy="refit"
)

[37]:

from sktime.datasets import load_airline

y = load_airline()[:60]

gscv.fit(y, fh=fh)

[37]:

ForecastingGridSearchCV(cv=SlidingWindowSplitter(fh=[1, 2, 3],
                                                 window_length=36),
                        forecaster=ThetaForecaster(),
                        param_grid={'sp': [1, 6, 12]}, scoring=PinballLoss())

Please rerun this cell to show the HTML repr or trust the notebook.

inspect hyper-parameter fit obtained by tuning:

[38]:

gscv.best_params_

[38]:

{'sp': 12}

obtain predictions:

[39]:

gscv.predict_interval()

[39]:

	Number of airline passengers
	0.9
	lower	upper
1954-01	190.832917	217.164705
1954-02	195.638436	226.620355
1954-03	221.947952	256.967883

for AutoML, use the MultiplexForecaster to select among multiple forecasters:

[40]:

from sktime.forecasting.compose import MultiplexForecaster
from sktime.forecasting.exp_smoothing import ExponentialSmoothing
from sktime.forecasting.naive import NaiveForecaster, NaiveVariance

forecaster = MultiplexForecaster(
    forecasters=[
        ("naive", NaiveForecaster(strategy="last")),
        ("ets", ExponentialSmoothing(trend="add", sp=12)),
    ],
)

forecaster_param_grid = {"selected_forecaster": ["ets", "naive"]}
gscv = ForecastingGridSearchCV(forecaster, cv=cv, param_grid=forecaster_param_grid)

gscv.fit(y)
gscv.best_params_

[40]:

{'selected_forecaster': 'naive'}

Pipelines with probabilistic forecasters#

sktime pipelines are compatible with probabilistic forecasters:

ForecastingPipeline applies transformers to the exogeneous X argument before passing them to the forecaster
TransformedTargetForecaster transforms y and back-transforms forecasts, including interval or quantile forecasts

ForecastingPipeline takes a chain of transformers and forecasters, say,

[t1, t2, ..., tn, f],

where t[i] are forecasters that pre-process, and tp[i] are forecasters that postprocess

`fit(y, X, fh)` does:#

X1 = t1.fit_transform(X)
X2 = t2.fit_transform(X1)
etc
X[n] = t3.fit_transform(X[n-1])

f.fit(y=y, x=X[n])

`predict_[sth](X, fh)` does:#

X1 = t1.transform(X)
X2 = t2.transform(X1)
etc
X[n] = t3.transform(X[n-1])

f.predict_[sth](X=X[n], fh)

[41]:

from sktime.datasets import load_macroeconomic
from sktime.forecasting.arima import ARIMA
from sktime.forecasting.compose import ForecastingPipeline
from sktime.split import temporal_train_test_split
from sktime.transformations.series.impute import Imputer

[42]:

data = load_macroeconomic()
y = data["unemp"]
X = data.drop(columns=["unemp"])

y_train, y_test, X_train, X_test = temporal_train_test_split(y, X)

[43]:

forecaster = ForecastingPipeline(
    steps=[
        ("imputer", Imputer(method="mean")),
        ("forecaster", ARIMA(suppress_warnings=True)),
    ]
)
forecaster.fit(y=y_train, X=X_train, fh=X_test.index[:5])
forecaster.predict_interval(X=X_test[:5])

[43]:

	0
	0.9
	lower	upper
Period
1997Q1	5.042704	6.119990
1997Q2	3.948564	5.235163
1997Q3	3.887471	5.253592
1997Q4	4.108211	5.506862
1998Q1	4.501319	5.913611

TransformedTargetForecaster takes a chain of transformers and forecasters, say,

[t1, t2, ..., tn, f, tp1, tp2, ..., tk],

where t[i] are forecasters that pre-process, and tp[i] are forecasters that postprocess

`fit(y, X, fh)` does:#

y1 = t1.fit_transform(y)
y2 = t2.fit_transform(y1)
y3 = t3.fit_transform(y2)
etc
y[n] = t3.fit_transform(y[n-1])

f.fit(y[n])

yp1 = tp1.fit_transform(yn)
yp2 = tp2.fit_transform(yp1)
yp3 = tp3.fit_transform(yp2)
etc

`predict_quantiles(y, X, fh)` does:#

y1 = t1.transform(y)
y2 = t2.transform(y1)
etc
y[n] = t3.transform(y[n-1])

y_pred = f.predict_quantiles(y[n])

y_pred = t[n].inverse_transform(y_pred)
y_pred = t[n-1].inverse_transform(y_pred)
etc
y_pred = t1.inverse_transform(y_pred)
y_pred = tp1.transform(y_pred)
y_pred = tp2.transform(y_pred)
etc
y_pred = tp[n].transform(y_pred)

Note: the remaining proba predictions are inferred from predict_quantiles.

[44]:

from sktime.datasets import load_macroeconomic
from sktime.forecasting.arima import ARIMA
from sktime.forecasting.compose import TransformedTargetForecaster
from sktime.transformations.series.detrend import Deseasonalizer, Detrender

[45]:

data = load_macroeconomic()
y = data[["unemp"]]

[46]:

forecaster = TransformedTargetForecaster(
    [
        ("deseasonalize", Deseasonalizer(sp=12)),
        ("detrend", Detrender()),
        ("forecast", ARIMA()),
    ]
)

forecaster.fit(y, fh=[1, 2, 3])
forecaster.predict_interval()

[46]:

	0
	0.9
	lower	upper
2009Q4	8.949103	10.068284
2010Q1	8.639806	10.206350
2010Q2	8.438112	10.337207

[47]:

forecaster.predict_quantiles()

[47]:

	0
	0.05	0.95
2009Q4	8.949103	10.068284
2010Q1	8.639806	10.206350
2010Q2	8.438112	10.337207

quick creation also possible via the * dunder method, same pipeline:

[48]:

forecaster = Deseasonalizer(sp=12) * Detrender() * ARIMA()

[49]:

forecaster.fit(y, fh=[1, 2, 3])
forecaster.predict_interval()

[49]:

	0
	0.9
	lower	upper
2009Q4	8.949103	10.068284
2010Q1	8.639806	10.206350
2010Q2	8.438112	10.337207

Building your own probabilistic forecaster#

Getting started:

follow the “implementing estimator” developer guide
use the advanced forecasting extension template

Extension template = python “fill-in” template with to-do blocks that allow you to implement your own, sktime-compatible forecasting algorithm.

Check estimators using check_estimator

For probabilistic forecasting:

implement at least one of predict_quantiles, predict_interval, predict_var, predict_proba
optimally, implement all, unless identical with defaulting behaviour as below
if only one is implemented, others use following defaults (in this sequence, dependent availability):
- predict_interval uses quantiles from predict_quantiles and vice versa
- predict_var uses variance from predict_proba, or variance of normal with IQR as obtained from predict_quantiles
- predict_interval or predict_quantiles uses quantiles from predict_proba distribution
- predict_proba returns normal with mean predict and variance predict_var
so if predictive residuals not normal, implement predict_proba or predict_quantiles
if interfacing, implement the ones where least “conversion” is necessary
ensure to set the capability:pred_int tag to True

[50]:

# estimator checking on the fly using check_estimator

# suppose NaiveForecaster is your new estimator
from sktime.forecasting.naive import NaiveForecaster

# check the estimator like this

# uncomment this block to run

# from sktime.utils.estimator_checks import check_estimator
#
# check_estimator(NaiveForecaster)

# this prints any failed tests, and returns dictionary with
#   keys of test runs and results from the test run
# run individual tests using the tests_to_run arg or the fixtures_to_run_arg
#   these need to be identical to test or test/fixture names, see docstring

[51]:

# to raise errors for use in traceback debugging:

# uncomment next line to run
# check_estimator(NaiveForecaster, raise_exceptions=True)

# this does not raise an error since NaiveForecaster is fine, but would if it weren't

Summary#

unified API for probabilistic forecasting and probabilistic metrics
integrating other packages (e.g. scikit-learn, statsmodels, pmdarima, prophet)
interface for composite model building is same, proba or not (pipelining, ensembling, tuning, reduction)
easily extensible with custom estimators

Useful resources#

For more details, take a look at our paper on forecasting with sktime in which we discuss the forecasting API in more detail and use it to replicate and extend the M4 study.
For a good introduction to forecasting, see Hyndman, Rob J., and George Athanasopoulos. Forecasting: principles and practice. OTexts, 2018.
For comparative benchmarking studies/forecasting competitions, see the M4 competition and the M5 competition.

Credits#

notebook creation: fkiraly

probabilistic forecasting framework: fkiraly, kejsitake
probabilistic metrics, tuning: eenticott-shell, fkiraly
probabilistic estimators: aiwalter, fkiraly, ilyasmoutawwakil, k1m190r, kejsitake

Generated using nbsphinx. The Jupyter notebook can be found here.

Probabilistic Forecasting with sktime#

Overview of this notebook#

Quick Start - Probabilistic Forecasting with sktime#

What is probabilistic forecasting?#

Intuition#

Interface view#

Formal view (endogeneous, one forecast time stamp)#

More formal details & intuition:#

Probabilistic forecasting interfaces in sktime#

Using probabilistic forecasts with update/predict stream workflow#

Probabilistic forecasting for multivariate and hierarchical data#

Metrics for probabilistic forecasts and evaluation#

overview - theory#

metrics: general signature and averaging#

metrics: interval vs quantile metrics#

evaluation by backtesting#

Visual Evaluation#

Advanced composition: pipelines, tuning, reduction, adding proba forecasts to any estimator#

Adding probabilistic forecasts to non-probabilistic forecasters#

Tuning and AutoML#

Pipelines with probabilistic forecasters#

fit(y, X, fh) does:#

predict_[sth](X, fh) does:#

fit(y, X, fh) does:#

predict_quantiles(y, X, fh) does:#

Building your own probabilistic forecaster#

Summary#

Useful resources#

Credits#

Probabilistic Forecasting with `sktime`#

Quick Start - Probabilistic Forecasting with `sktime`#

Probabilistic forecasting interfaces in `sktime`#

`fit(y, X, fh)` does:#

`predict_[sth](X, fh)` does:#

`fit(y, X, fh)` does:#

`predict_quantiles(y, X, fh)` does:#
